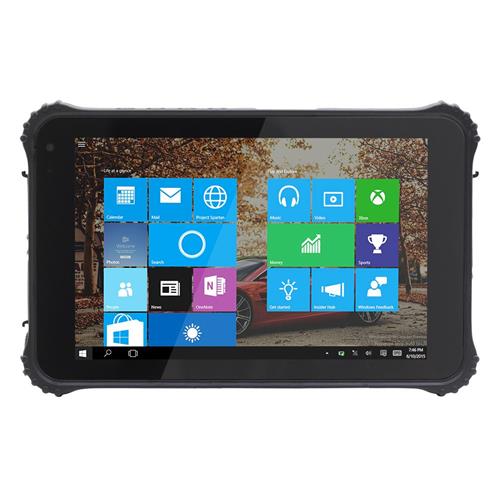

10.1 inch 10:16
800 (RGB)*1280
400 cd/m2

10 points Capacitive，G+G，Rigidity: above 7H-Anti-scratch，TP thickness：1.1mm，COF

Front:2.0MP with chargeing indicator light
Rear: 5.0MP

Sensitivity:-42db, output resistance:2.2kΩ

Lithium-ion polymer battery ，

pluggable, dimension: 21.8*92.3*9.5mm
3.7V/10000mAh
8hrs(default 50% volumn，default200nit，play 1080P HD video)

Embedded 8Ω/0.8W waterproof speaker x 1

CPU Intel cherry Trail Z8350 1.33Ghz-1.92GHz
GPU Intel HD Graphic(Gen7)
RAM 2GB/4GB
ROM 32GB/64GB/128GB
G_sensor Gravity acceleration sensor
WIFI WIFI 802.11(a/b/g/n) Frequency 2.4G+5.8G dual band WIFI
Bluetooth BT4.1 (BLE) class1 transmission distance：10m
3G Support
4G Optional
GPS Support
NFC Optional
Fingerprint Optional
1D Barcode scanner Optional
2D Barcode Scanner Optional
TF slot Support TF x1 max：128G

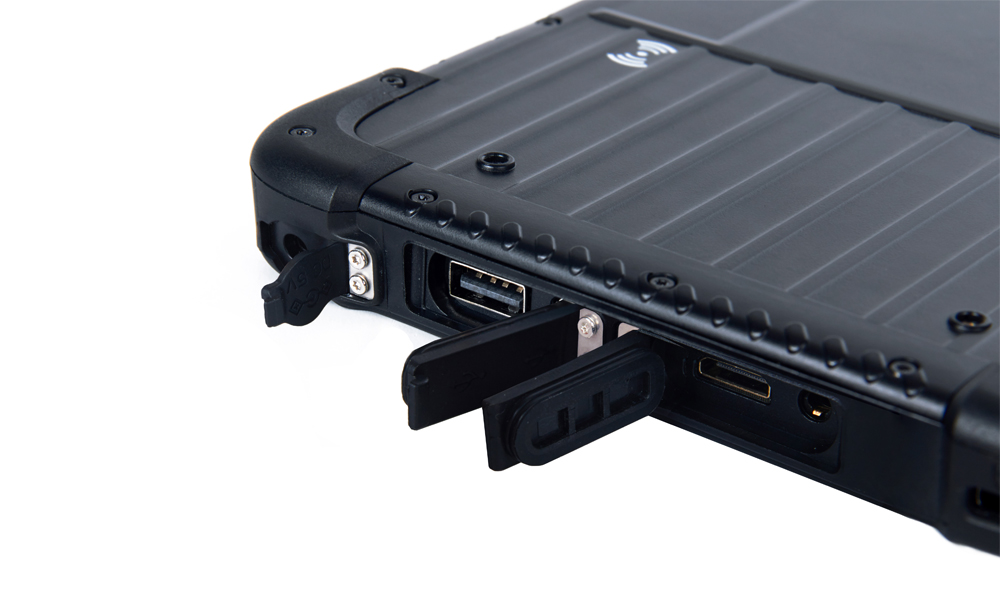

USB Interface USB 2.0*1 （Host）for windows Android OTG x1
Earphone Jack ∮3.5mm standard earphone jack x1
DC Jack DC 5V 3A ∮3.5mm Power connector x1
HDMI HDMI 1.4a Type C x1
Extensive Slot 12pin Pogo Pin x1
DB9 PORT  *1 (RS232) TTL electrical level
RJ45 PORT *1(10/100 self-adaption)
Air outlet Optional
OTG Cable USB OTG to MICRO USB cable length:45mm
USB Cable USB to micro 5P L=1.2M 4core aluminum foil shield cable
Power Adaptor AC100V ~ 240V、50Hz/60Hz output DC 5V/3A USA Standard CE approval
Operation System windows 10 Home Default language：English Or Android 5.1

IP65 Report： Water resistance：IP-X5，Dust resistance：IP-6X Report ID no.：SET2015-07677

a.Inner Nozzle diameter：6.3mm； b. water speed：12.5±0.625L/min；
c. Water Pressure：adjust according to water volumn；
d.Central part of water volumn
e.Spray time in surface of panel：about 1min；f.test time：at least 3min；
g.distance between nozzle and panel surface：2.5～3m。

After test，there is no water leakage in sample. YES
YES Ex ic IIB T4 G
YES UN3803，MSDS,IEC62133

100cm composite wood floors, in operation status
‘-10 °C to 50 °C
’-30 °C to 70 °C
Humidity: 95% Non-Condensing
